SQL Joins

Introduction

SQL joins are used to combine rows from two or more tables based on a related column. In this document, we’ll explore different types of joins using the given database schema.

:information_source: Just as a reminder, we have the following tables in our University dataset:

students
teachers
courses
course_teachers
enrollments
results

Inner Join

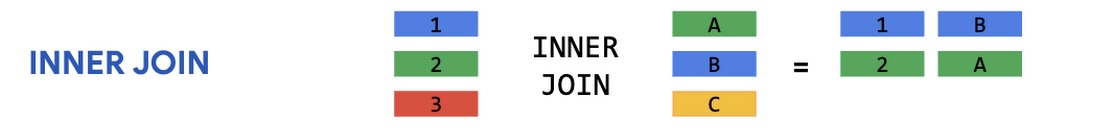

An INNER JOIN retrieves records where there is a matching value in both tables. Any non-matching rows are discarded.

alt text

Example: Get students and their enrolled courses

SELECT
    students.first_name,
    students.last_name,
    courses.name AS course_name
FROM enrollments
INNER JOIN students ON enrollments.student_id = students.id
INNER JOIN courses ON enrollments.course_id = courses.id;

How it works:

Matches enrollments with students. The result is a temporary result-set T1.
Then matches this T1 with courses.
If a student is NOT enrolled in any course, they won’t appear.



flowchart LR
    E[enrollments] --> J1[INNER JOIN ON student_id = id]
    S[students] --> J1
    J1 --> T1[(Temporary result-set T1)]

    T1 --> J2[INNER JOIN ON course_id = id]
    C[courses] --> J2
    J2 --> Result[(Final result-set)]

    %% Styles for result sets
    style T1 fill:#fff3b0,stroke:#e0a400,stroke-width:2px
    style Result fill:#fff3b0,stroke:#e0a400,stroke-width:2px

    %% Optional: style join nodes (subtle)
    style J1 fill:#e6f3ff,stroke:#4a90e2,stroke-width:1px,stroke-dasharray: 3 3
    style J2 fill:#e6f3ff,stroke:#4a90e2,stroke-width:1px,stroke-dasharray: 3 3

View this query result

first_name	last_name	course_name
Sandra	Durand	Supply Chain Management
Sandra	Durand	Database Management Systems
Sandra	Durand	Molecular Biology
Sandra	Durand	Statics and Dynamics
…	…	…

:arrow_left: Left Join

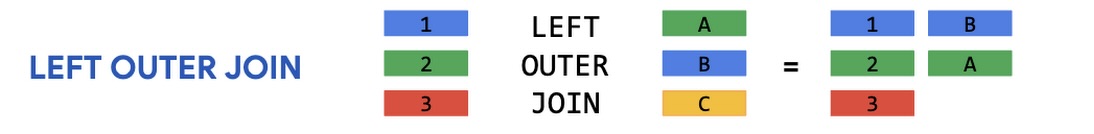

A LEFT JOIN returns all records from the left table, plus matching records from the right table. If no match exists, NULL is returned from the right-side columns.

alt text

Example: Get all students and their enrollment info (including students not enrolled) To list all courses and any enrollments (if present):

SELECT
    students.first_name,
    students.last_name,
    enrollments.course_id,
    enrollments.academic_year
FROM students
LEFT JOIN enrollments ON students.id = enrollments.student_id;

How it works:

Matches all students with enrollments.
If a student does not have an enrollment, the fetched values for enrollment (‘course_id’and ‘academic_year’) will be ‘NULL’.


flowchart LR
    S[students] --> J1[LEFT JOIN ON students.id = enrollments.student_id]
    E[enrollments] --> J1
    J1 --> Result[(Final result-set: first_name, last_name, course_id, academic_year)]

    %% Styles for result set (yellow highlight)
    style Result fill:#fff3b0,stroke:#e0a400,stroke-width:2px

    %% Optional: style join node (subtle)
    style J1 fill:#e6f3ff,stroke:#4a90e2,stroke-width:1px,stroke-dasharray: 3 3

    %% Annotation: non-matching rows
    noteN[["If a student has NO matching enrollment:<br/>course_id = NULL, academic_year = NULL"]]
    Result --- noteN

View this query result

first_name	last_name	course_id	academic_year
Sandra	Durand	97	2024
Sandra	Durand	3	2024
Sandra	Durand	87	2024
Sandra	Durand	31	2024
…	…	…

:arrow_right: Right Join

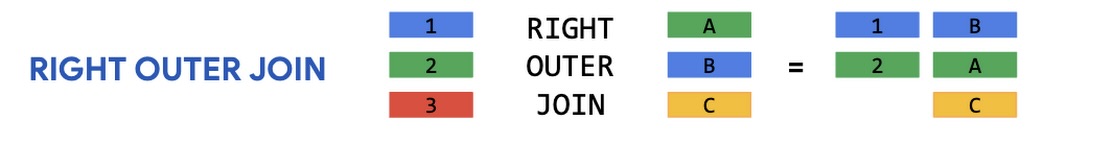

A RIGHT JOIN works similarly to LEFT JOIN, but keeps all records from the right table while including only matching rows from the left.

alt text

Example: Get all students and their corresponding enrollments (even if some students did not enroll)

SELECT
    enrollments.course_id,
    enrollments.academic_year,
    students.first_name,
    students.last_name
FROM enrollments
RIGHT JOIN students ON enrollments.student_id = students.id;

How it works:

Matches enrollments with all students.
If a student does not have an enrollment, the fetched values for enrollment (‘course_id’ and ‘academic_year’ will be ‘NULL’.


flowchart LR
    E[enrollments] --> J1[RIGHT JOIN ON enrollments.student_id = students.id]
    S[students] --> J1
    J1 --> Result[(Final result-set: course_id, academic_year, first_name, last_name)]

    %% Styles for result set (yellow highlight)
    style Result fill:#fff3b0,stroke:#e0a400,stroke-width:2px

    %% Optional: style join node (subtle)
    style J1 fill:#e6f3ff,stroke:#4a90e2,stroke-width:1px,stroke-dasharray: 3 3

    %% Annotation: non-matching rows
    noteN[["If a student has NO matching enrollment:<br/>course_id = NULL, academic_year = NULL"]]
    Result --- noteN

Typically, LEFT JOIN is preferred over RIGHT JOIN for readability.

View this query result

course_id	academic_year	first_name	last_name
97	2024	Sandra	Durand
3	2024	Sandra	Durand
87	2024	Sandra	Durand
31	2024	Sandra	Durand
51	2024	Sandra	Durand
…	…	…

:arrow_double_down: Full Outer Join

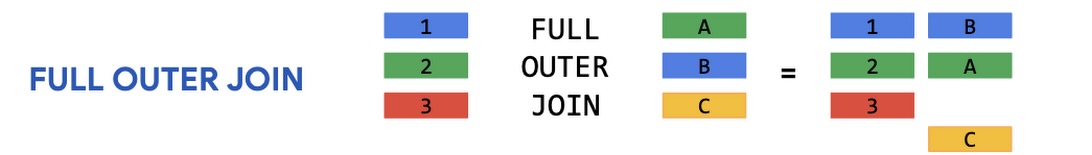

A FULL OUTER JOIN returns all records from both tables, filling NULLs where matches don’t exist.

alt text

Example: Get all students and enrollments (including unmatched records)

SELECT
    students.first_name,
    students.last_name,
    enrollments.course_id,
    enrollments.academic_year
FROM students
FULL OUTER JOIN enrollments ON students.id = enrollments.student_id;
FULL OUTER JOIN courses ON enrollments.course_id = courses.id;

How it works:

Matches students with enrollments.
- If a student does not have a match, the fetched values for enrollment will be NULL.
- If an enrollment does not have a match, the fetched values for student will be NULL.
- The result is a temporary result-set T1.
Matches T1 with courses.
- If T1 does not have a match, the fetched values for course will be NULL.
- If a course does not have a match, the fetched values for T1 will be NULL.

flowchart LR
    S[students] --> J1[FULL OUTER JOIN ON students.id = enrollments.student_id]
    E[enrollments] --> J1
    J1 --> T1[(Temporary result-set T1)]

    T1 --> J2[FULL OUTER JOIN ON enrollments.course_id = courses.id]
    C[courses] --> J2
    J2 --> Result[(Final result-set)]

    %% Styles for result sets
    style T1 fill:#fff3b0,stroke:#e0a400,stroke-width:2px
    style Result fill:#fff3b0,stroke:#e0a400,stroke-width:2px

    %% Style join nodes
    style J1 fill:#e6f3ff,stroke:#4a90e2,stroke-width:1px,stroke-dasharray: 3 3
    style J2 fill:#e6f3ff,stroke:#4a90e2,stroke-width:1px,stroke-dasharray: 3 3

    %% Notes for NULL behavior
    note1[["If student has no match → enrollment columns = NULL<br/>If enrollment has no match → student columns = NULL"]]
    note2[["If T1 has no match → course columns = NULL<br/>If course has no match → T1 columns = NULL"]]
    T1 --- note1
    Result --- note2

View this query result

first_name	last_name	course_id	academic_year
Sandra	Durand	97	2024
Sandra	Durand	3	2024
Sandra	Durand	87	2024
Sandra	Durand	31	2024
…	…	…

:twisted_rightwards_arrows: Cross Join

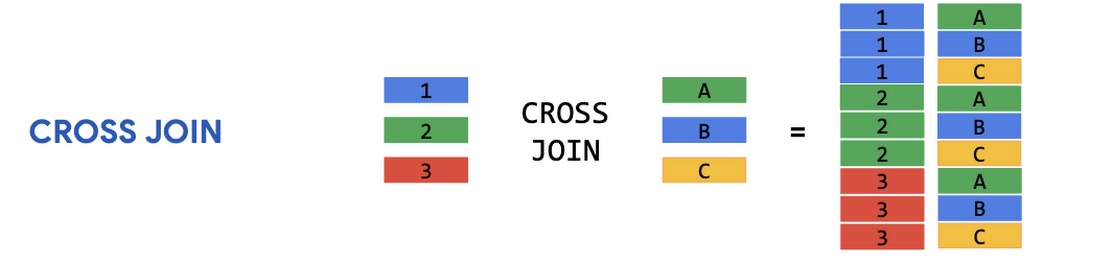

A CROSS JOINs generates a Cartesian product, meaning every row in one table joins with every row in another.

alt text

Example: Get all possible student-course combinations

SELECT
    students.first_name,
    students.last_name,
    courses.name AS course_name
FROM students
CROSS JOIN courses;

How it works:

Every student is matched with every course

flowchart LR
    S[students] --> J[CROSS JOIN]
    C[courses] --> J
    J --> Result[(Final result-set: Cartesian product)]

    %% Style result set
    style Result fill:#fff3b0,stroke:#e0a400,stroke-width:2px

    %% Style join node
    style J fill:#e6f3ff,stroke:#4a90e2,stroke-width:1px,stroke-dasharray: 3 3

    %% Note
    noteN[["Every student is matched with every course.<br/>Rows = students × courses"]]
    Result --- noteN

If we have 100 students and 10 courses, this returns 1,000 rows.
Not commonly used unless explicitly needed.
Can be dangerous if tables contain large numbers of rows!

View this query result

first_name	last_name	course_name
Luuk	Wagner	Introduction to Programming
Luuk	Wagner	Data Structures and Algorithms
Luuk	Wagner	Database Management Systems
Luuk	Wagner	Operating Systems
…	…	…

:arrow_right_hook: Self Join

A `SELF JOIN’ joins a table with itself using a join condition. It does not automatically produce a Cartesian product unless you omit the ON clause (which would then behave like a CROSS JOIN).

Example: Finding students from the same city

SELECT
    s1.first_name AS s1_first_name,
    s1.last_name AS s1_last_name,
    s2.first_name AS s2_first_name,
    s2.last_name AS s2_last_name,
    s1.city
FROM students s1
INNER JOIN students s2
    ON s1.city = s2.city
    AND s1.id <> s2.id;

How it works:

The students table is joined with itself.
Matches each student (s1) with other students (s2) from the same city (s1.city = s2.city).
The condition (s1.id <> s2.id) prevents matching a student with themselves.


flowchart LR
    S1[students alias s1] --> J[INNER JOIN ON s1.city = s2.city AND s1.id <> s2.id]
    S2[students alias s2] --> J
    J --> Result[(Pairs of students from the same city)]

    %% Style result set
    style Result fill:#fff3b0,stroke:#e0a400,stroke-width:2px

    %% Style join node
    style J fill:#e6f3ff,stroke:#4a90e2,stroke-width:1px,stroke-dasharray: 3 3

    %% Note
    noteN[["No Cartesian product.<br/>Only pairs matching the ON condition."]]
    Result --- noteN

View this query result

s1_first_name	s1_last_name	s2_first_name	s2_last_name	city
Luuk	Wagner	Carmen	Lammers	Pijnacker-Nootdorp
Luuk	Wagner	Puck	Hoekstra	Pijnacker-Nootdorp
Luuk	Wagner	Daniel	van der Meer	Pijnacker-Nootdorp
…	…	…	…	…

Real-World Considerations:

INNER JOIN is the default choice for extracting accurate relationships.
LEFT JOIN is great for auditing data (seeing missing connections).
FULL JOIN isn’t always available in some databases (MySQL doesn’t support it natively).
CROSS JOIN should be handled with caution due to potentially huge result sets.
SELF JOIN is highly useful in social networks or employee management scenarios.

Conclusion

SQL joins aren’t just theoretical constructs; they’re powerful tools that shape data-driven decisions. Mastering them ensures efficient data retrieval, enhanced reporting, and strong relational database design.
